86 Outdoor Patio Heaters Installed at Top Golf, Watford Watford, Hertfordshire

Project Type

Sports Facility Heating

The Project

Top Golf at Watford is a truly impressive facility combining a high-tech golf driving range with a lively bar and restaurant. The driving range itself comprises 44 individual bays which include a table and chairs as well as a platform from which to tee off. Customers waiting for their turn, enjoy full service from the bar and it is obviously in the company’s interest to create a comfortable environment. To put it bluntly: comfortable customers spend more money.

Reliable Outdoor Heating

When a BN Thermic engineer visited Top Golf, it was clear that an effective heating system would have to use shortwave infrared technology. Shortwave heaters heat people directly and crucially the heating effect is not ‘blown off course’ by air movement.

In an exposed location such as a golf driving range, only shortwave halogen heaters can be relied open; precluding the use of mediumwave and longwave (sometimes called far infrared) heaters.

BN Thermic outdoor patio heaters are IP55 rated and are designed to operate outdoors all year round

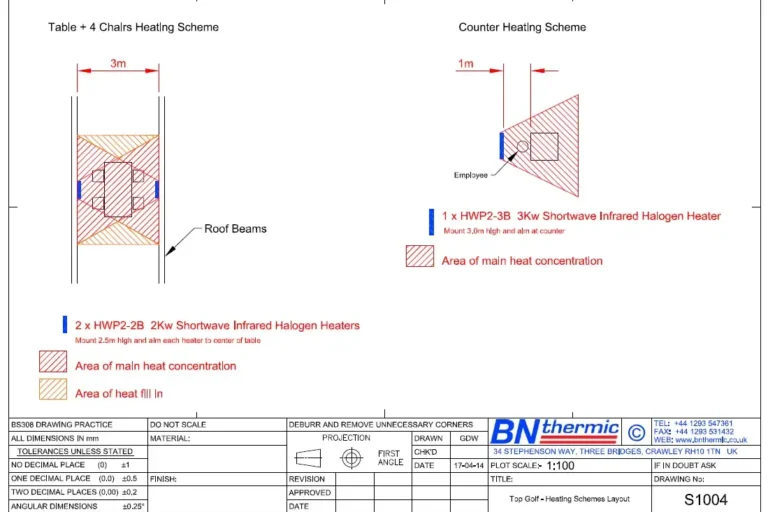

The bespoke design a BN Thermic engineer put together

Two 2kW Quartz Halogen Heaters per Bay

BN Thermic suggested that each bay be heated by pair of 2kW quartz halogen heaters from its HWP range. The heaters were mounted at 2.5m above floor level and either side of the table. Heaters from the HWP range are IP55 rated meaning that they can be used safely in all weather conditions.

Click for specs of BN Thermic’s patio heater range.

Control for Economy

Quartz halogen heaters are instantly effective. This means that there is no requirement for pre-heating and thus an unoccupied area does not need to be heated. To make the most of this feature, BN Thermic recommended push-button time control.

Should a customer require the heaters to be switched on, they merely push the button on the timer and the heaters will operate for a pre-programmed period, perhaps 30 minutes. Once this period has elapsed, the heaters will be automatically switched off until the button is pushed again.

Wall mounted push button timers ensure running costs are kept to a minimum

Golfers enjoying the heaters

Planning an Installation is Vital

For a successful outdoor heating installation, it is important to select heaters with the output required and to mount them at an appropriate height. If the installation is not planned carefully, the heating effect can be insufficient or too intense.

Please contact BN Thermic to discuss your next outdoor heating project; we can help you to get the right heaters in the right locations.
